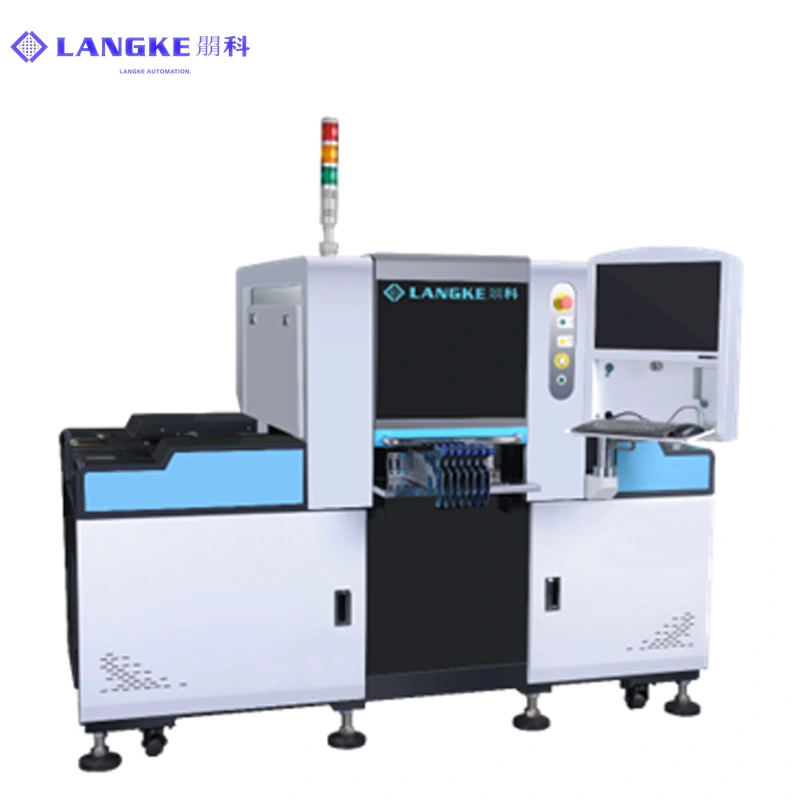

LK-1200 high speed pick and place machine

SMT LK-1200 high speed pick and place machine

SMT LK-1200 high speed pick and place machine

Description

SMT LK-1200 high speed pick and place machine

LK-1200 PNP MC.jpg


Model

LK-1200

PCB max size

1200(X)*430(Y)*25(Z)mm

Z Axis max moving area

25mm

Table max moving area

1200mm

max mounting speed

26000CPH

positional accuracy

0.05mm

Nozzle buffer heigh range

4.0

Power

220V/50Hz

Control method

computer

Air pressure

0.65-0.75Mpa

Average power

2KW

feeding

electric feeder

mounting head driving motor

Fuji AC servo motor

mounting head

8 heads

feeder quantity

14 pcs

component angle

any angle

Air source

Vacuum pump

OS program method

English-Chinese

weight

2000KG

Dimension(L*W*H)

2040mm*1300mm*1500mm


send inquiry to us
