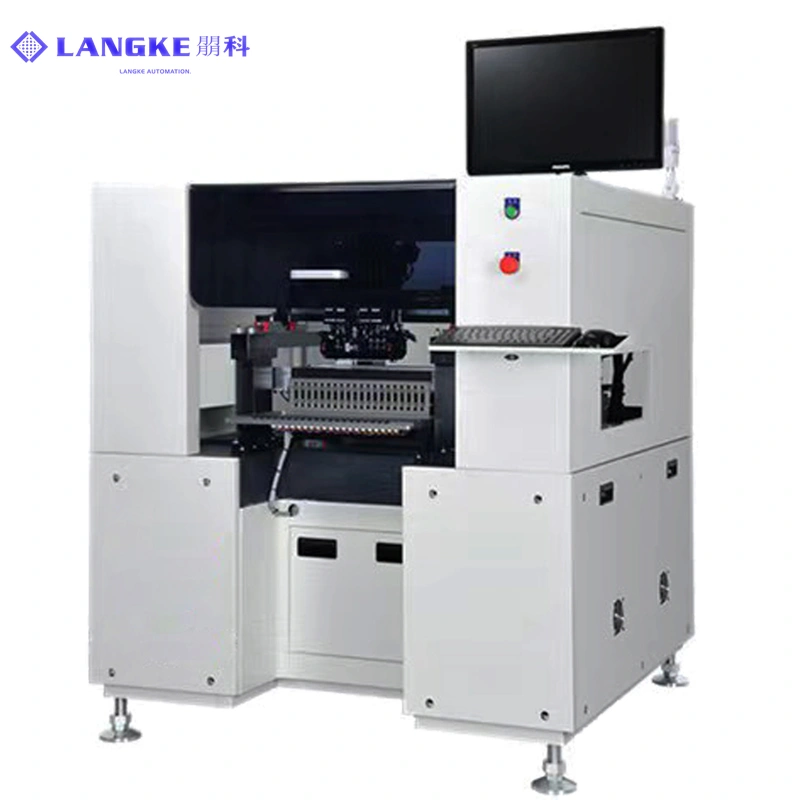

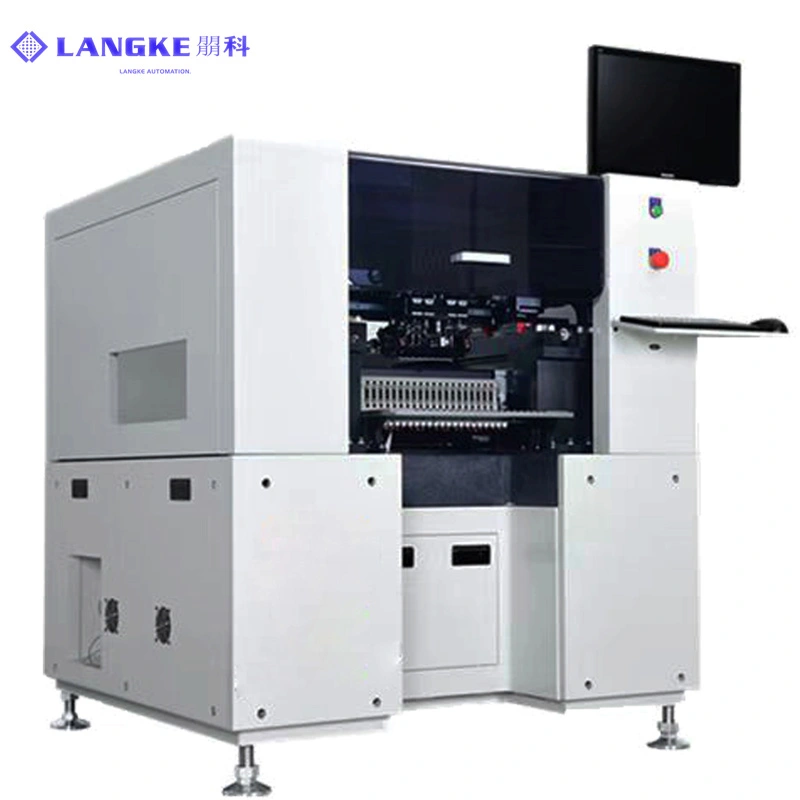

600SV online SMT placement machine

600SV online SMT placement machine


600SV online SMT placement machine

Technical Parameters




Flying Vision Alignment   System

Number of Spindles

8 Spindles x 1 Gantry

Rated Placement Speed

Vision Alignment

LED 2835 40,000 CPH (Optimum)

Placement Accuracy


(Based on the standard chips)

Mechanical Precision


Component Range

Fly Camera


high-power LED, IC<10mm

Max Height


(Can handle max. 16mm without   vision alignment)

Board Dimension(mm)


50(L) x 50(W)


600(L) x 380(W)

PCB Thickness

0.5 - 3.0

Board Handling Method

Inline Conveyor

Tape Feeder

Feeder Type

Electric Feeder

Feeder Capacity

20 (12mm Standard)


8mm, 12mm, 16mm, 24mm



AC 220V/240V 50/60Hz, Single   phase

Max 3.0KW

Air Consumption

0.55-0.7MPa (5.6-7.1kgf/cm2)


Approx. 1100kg

External Dimension(mm)

1,230(L) x 1,200(D) x   1,360(H)


Product Features

1.High-accuracy: Each of the eight pick-up heads is equipped with a FLYING vision alignment camera to guarantee high accuracy.

2.High-speed: Maximum placement speed reaching 0.09s/chip.

3.With a SMEMA-compatible inline conveyor for line automation.

4.Each mounting head has its own Z - direction servo motor, which is designed for vertical motion

5.Places SMD components from 0603 to 7474, apply to LED chip, capacitors, resistors, IC, diode, odd-shape components etc.

6.Highest applicability of high-speed chip mounters to LED DOB high components.

7.Suitable for all LED lighting products, including flexible PCB strips, circular LED light bulb boards and even irregularly shaped boards. Assembles LED PCBs up to 600mm long in a single pass.

8.Excellent quality hardware support by using international famous brands ensure placement repeatability and precision.

9.Self-developed software simplifies production, easy operating and programming.
