Description

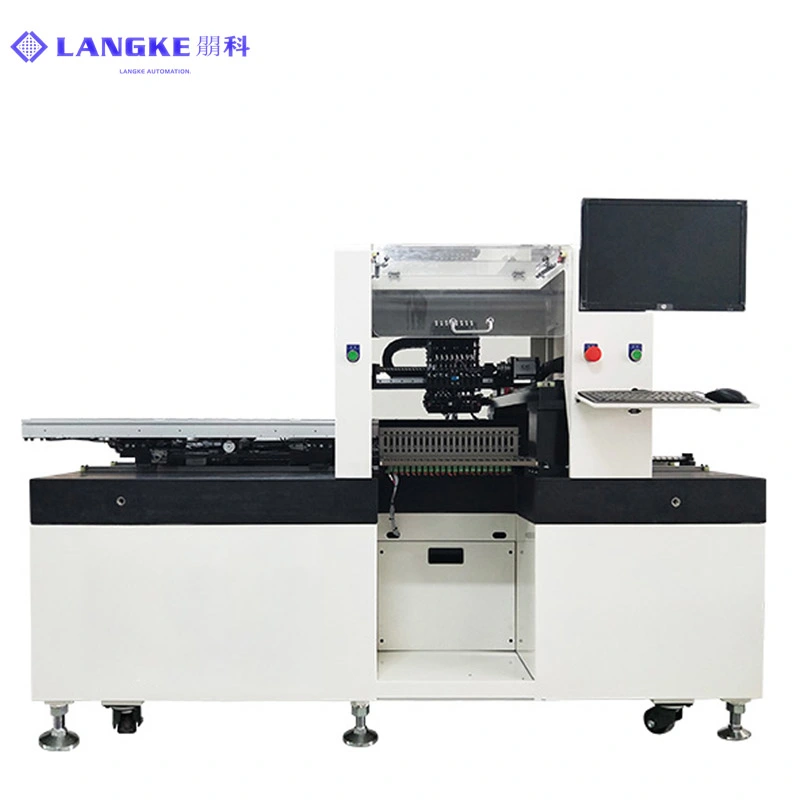

8 heads SMT pick and place machine 530LV

Technical Parameters

Model

530LV

Alignment

Flying Vision Alignment System

Number of Spindles

8 Spindles x 1 Gantry

Rated Placement Speed

Vision Alignment

LED 2835: 45,000 CPH (Optimum)

Placement Accuracy

±0.05mm (Based on the standard chips)

Mechanical Precision

±0.02mm

Component Range

Vision Alignment

0603(inch)~5050~7474(mm),

high-power LED, IC<10mm

Max Height

H=10mm

(can handle max. 16mm without vision alignment)

Board Dimension(mm)

Maximum

1,200(L) x 360(W)

Board Handling Method

Inline Conveyor

Tape Feeder

Feeder Type

Electric Feeder

Feeder Capacity

20 (12mm)

Optional

8mm, 12mm, 16mm, 24mm

Utility

Power

AC 220V/240V 50/60Hz, Single phase

Max 2.8KW

Air Supply

0.55-0.7MPa (5.6-7.1kgf/cm2)

Built-in Vacuum Pump for Heads

Mass

Approx. 1560kg

External Dimension(mm)

2,000(L) x 1,250(D) x 1,400(H)



Product Features

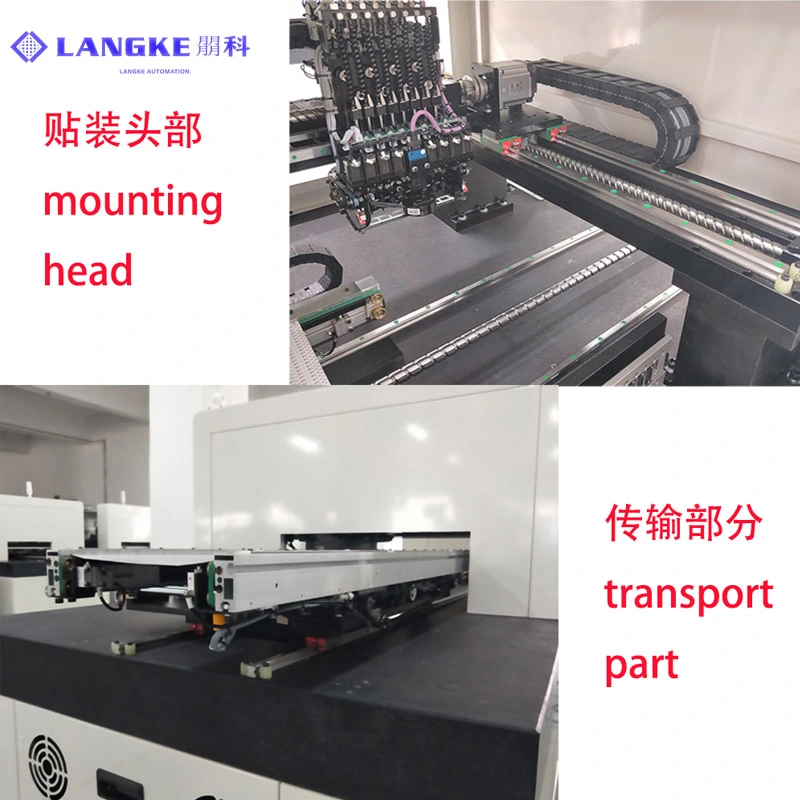

1.High-accuracy: Each of the eight pick-up heads is equipped with a FLYING vision alignment camera to guarantee high accuracy.

2.High-speed: Maximum placement speed reaching 0.086s/chip.

3.Each mounting head has its own Z - direction closed-loop stepper motor, which is designed for vertical motion.

4.Places SMD components from 0603 to 7474, including resistors, capacitors, standard and irregularly shaped LEDs.

5.Suitable for all LED lighting products, including flexible PCB strips, circular LED light bulb boards and even irregularly shaped boards. Assembles LED PCBs up to 1.2 meters long in a single pass.

6.With a SMEMA-compatible inline conveyor for line automation.

7.Heavy marble platform support to ensure long-service life.

8.Excellent quality hardware support by using international famous brands ensure placement repeatability and precision.

9.Self-developed software simplifies production, easy operating and programming.
