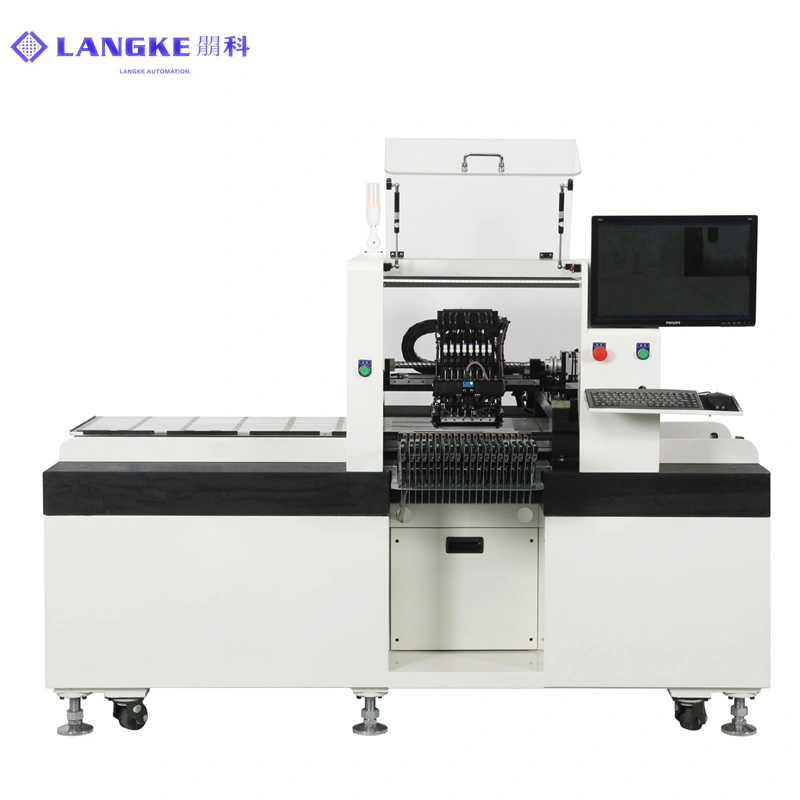

Semi-automatic 8 Heads LED Pick and Place Machine
Technical Parameters
Model | 530SV |
Alignment | Flying Vision Alignment System |
Number of Spindles | 8 Spindles x 1 Gantry |
Rated Placement Speed | Vision Alignment | LED 2835: 45,000 CPH (Optimum) |
Placement Accuracy | ±0.05mm (Based on the standard chips) |
Mechanical Precision | ±0.02mm |
Component Range | Vision Alignment | 0603(inch)~5050~7474(mm), high-power LED, IC<10mm |
Max Height | H=10mm (can handle max. 16mm without vision alignment) |
Board Dimension(mm) | Maximum | 1,500(L) x 400(W) |
Board Handling Method | Magnetic Fixture Worktable |
Tape Feeder | Feeder Type | Electric Feeder |
Feeder Capacity | 20 (12mm) |
Optional | 8mm, 12mm, 16mm, 24mm |
Utility | Power | AC 220V/240V 50/60Hz, Single phase |
Max 2.8KW |
Air Supply | Built-in Vacuum Pump |
Mass | Approx. 1560kg |
External Dimension(mm) | 2,000(L) x 1,250(D) x 1,400(H) |
Product Features
1.High-accuracy: Each of the eight pick-up heads is equipped with a FLYING vision alignment camera to guarantee high accuracy.
2.High-speed: Maximum placement speed reaching 0.086s/chip.

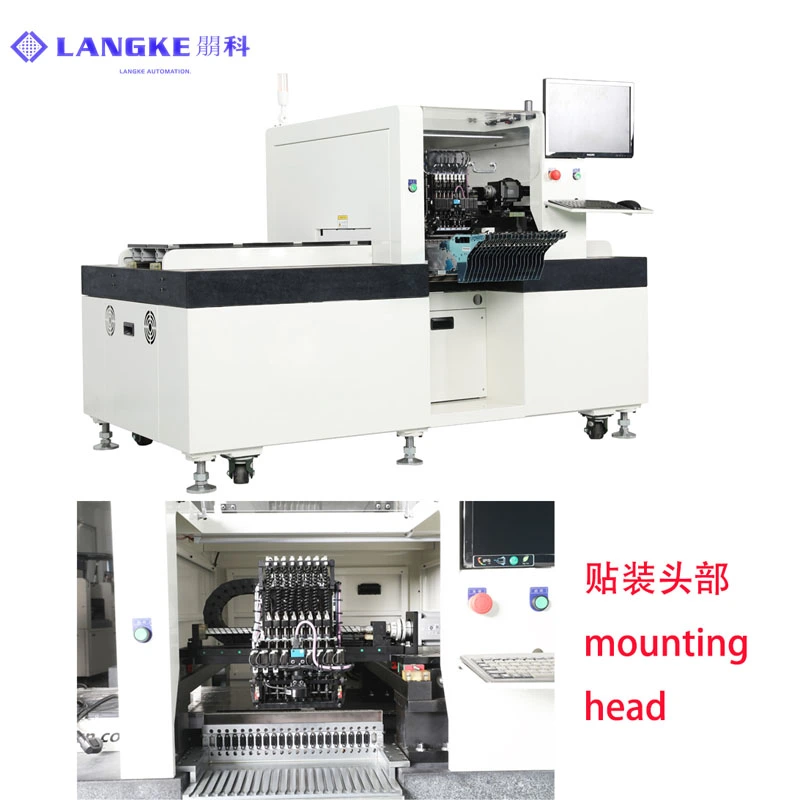

3.Each mounting head has its own Z - direction closed-loop stepper motor, which is designed for vertical motion.
4.Places SMD components from 0603 to 7474, including resistors, capacitors, standard and irregularly shaped LEDs.
5.Suitable for all LED lighting products, including flexible PCB strips, circular LED light bulb boards and even irregularly shaped boards. Assembles LED PCBs up to 1.5 meters long in a single pass.
6.Provide non-stop circulating production for small size PCBs.
7.Built-in vacuum pump, no outside air source needed.
8.Heavy marble platform support to ensure long-service life.
9.Excellent quality hardware support by using international famous brands ensure placement repeatability and precision.
10.Self-developed software simplifies production, easy operating and programming.
