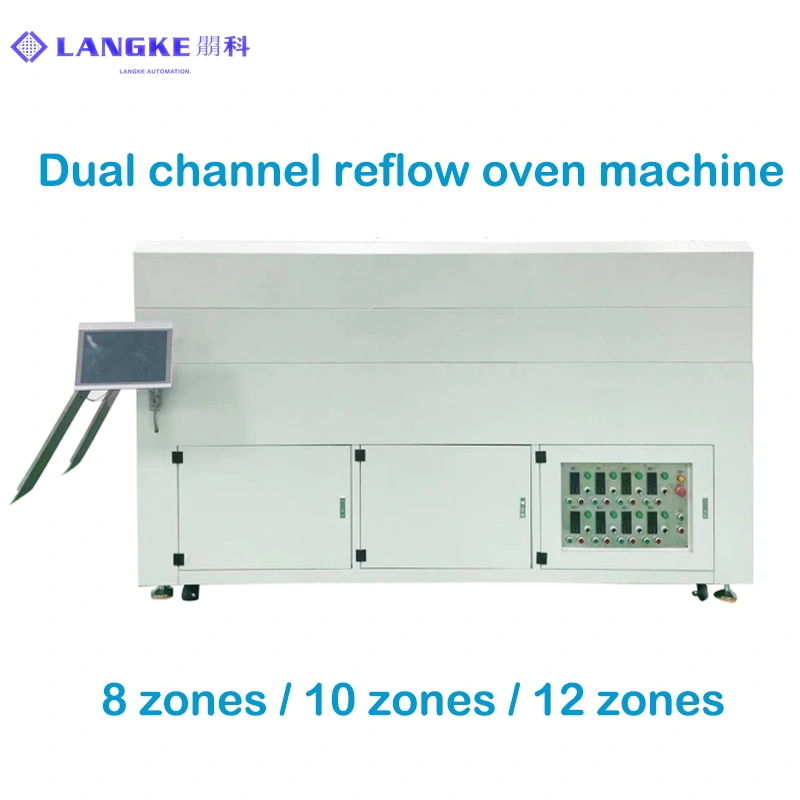

dual channel lead free reflow oven machine for cob production line
双通道回流焊 |
Model | LK-D800 |
Parameter |
type | vertical |
weight | about 750KG |
power | 380V |
environment requirement | class1000 |
color | gray-white |
machine dimension | 3300*1100*1400mm |
Specification |
heating zones | Dual 8 heating zones(up 8 bottom 8, totally 32 heating zones) |
heating method | Hot air |
Power | 3Phase 380V 50HZ |
total power | 35KW |
|
mesh width | 250mm |
pcb size | 20-190 |
transport direction | L-R/R-L |
working efficiency | 0-2m/min |
transport method | mesh |
component height | 45mm |
heating length | 3000mm |
Temperature difference | ±2℃ |
enter pcb max size | 190mm |
dual max enter width | 700mm |
warming-up time | 20mins |
Control system |
Circuit system | Power system, PLC system, temperature system |
Dynamic system | motor + mesh dynamic system |
software system | PLC motion control system, temperature control system |
Usage | non-lead free / lead free |
transport system | mesh transport + infeed pcb transport |
Remark | Can be customized according to customer heating zones/length/infeed width |
