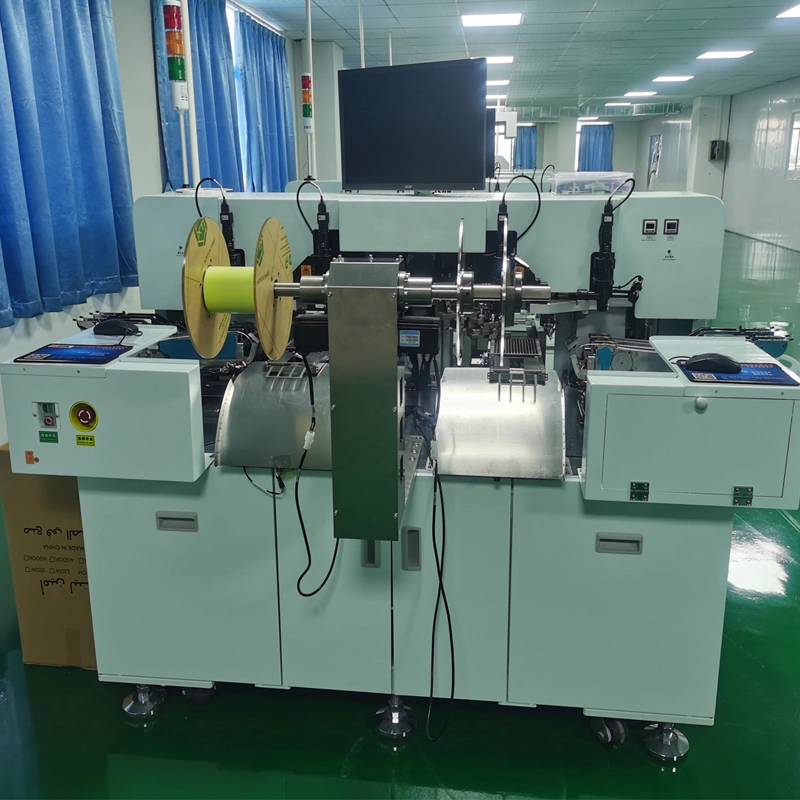

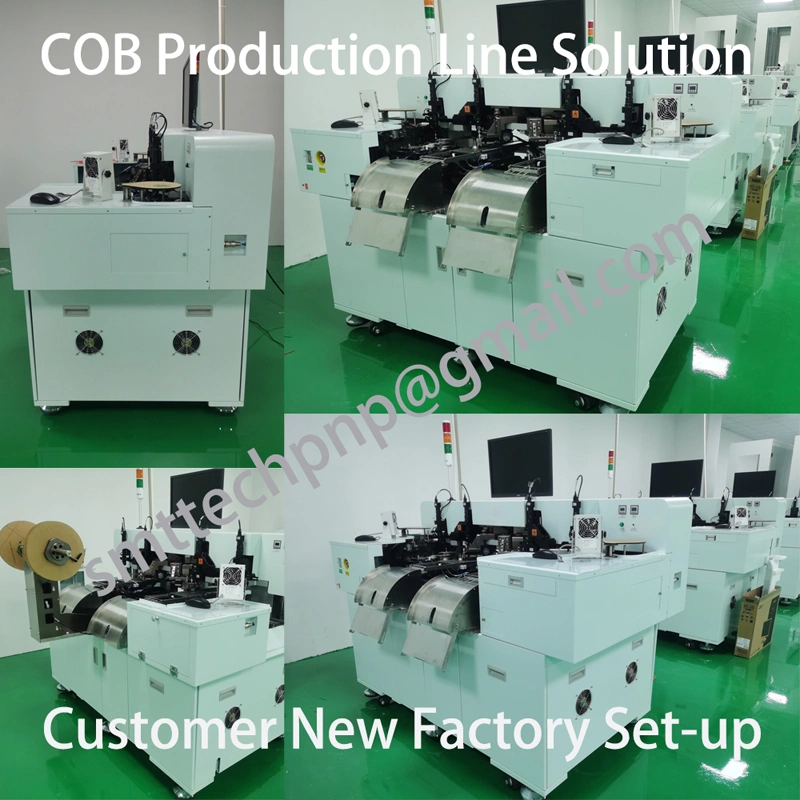

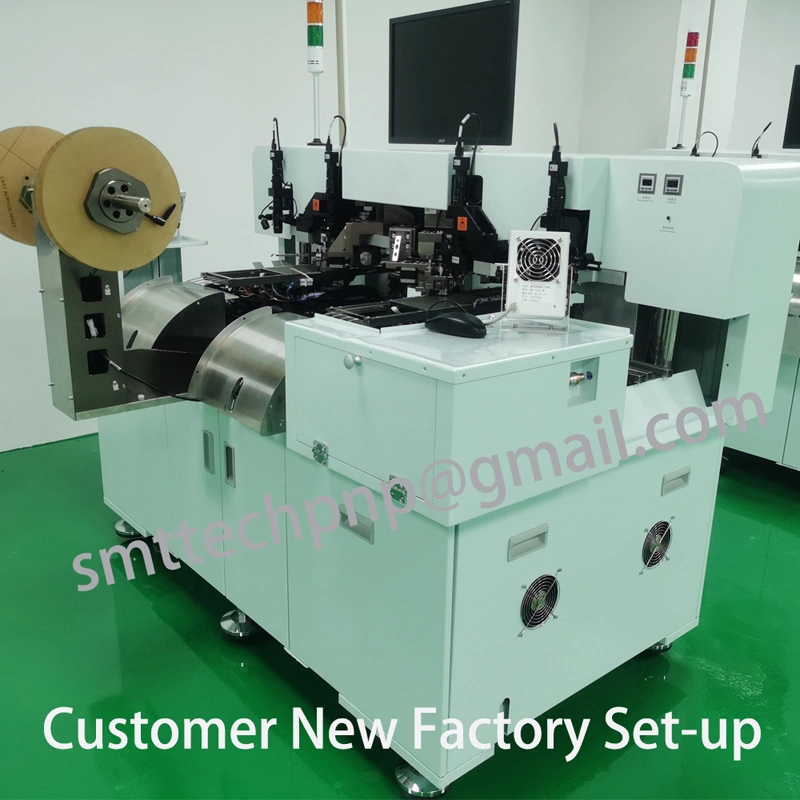

COB resistance bonding machines for roll to roll FPCB
LED Resistance machine |
Model | GTS80T |
System |
production cycle | 42K/h (cycle time is depended on the chip size and bracket) |
XY accuracy | ±1mil(±0.025mm) |
Chip XY work area |
chip size | 3mil*3mil-80mil*80mil(0.076mm*0.076mm-2mm*2mm) |
resolution ration | 1μm |
Image recognize system |
Gray scale | 256 degree |
resolution ration | 656*492 pixel |
image recognize accuracy | ±0.025mil@50mil observation range |
Crystal absorbing robotic hand system |
Crystal absorbing swing arm | 90°rotatable solid crystal |
Crystal absorbing pressure | 30g-250g can be adjusted. |
Feeding work table |
travel range | / |
XY resolution ration | 0.02mil(0.5μm) |
Suitable bracket size |
length of bracket | / |
width of bracket | 120mm(normal roll PCB width) |
Required facilities |
Power | 220V AC±5%/50HZ |
Air source | 0.5MPa（MIN） |
Rated power | 1200W |
Gas consumption | 40L/min |
Volume and Weight |
L*W*H | 180*100*175cm |
weight | 1300kg |
