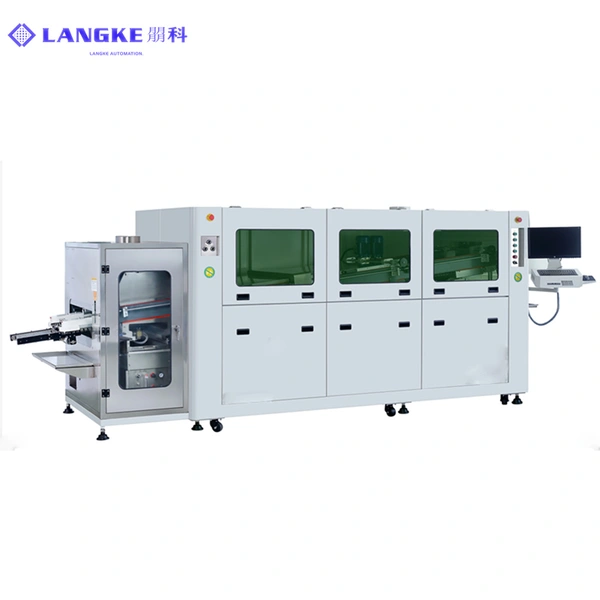

THT Lead free wave soldering machine for driver production line
Parameter |
Model | LKU-450 | solder pot type | the 4th Energy-saving solder pot |
PCB Width | Max.50~450 | warn-up time | About 90min (set 250℃) |
PCB transport height | 750±50mm | solder pot temperature | room temperature to 350℃ can be set |
transport speed | 300-1800mm／Min | solder pot temperature control precision | ±2℃ |
solder angle | 3-7° | Claw type | Heavy-duty double-furrow claw/ customized |
PCB height | Max.120mm | add solder bar method | manual |
wave height range | 0-18mm | temperature control method | PID+SSR |
number of waves | 2 | width adjust method | manual(standard)/automatic(option) |
preheat zone length | 1800MM | flux auto feeding | Automatic |
preheat zone number | 4 | Flux flow | 10~100ml/min |
direction | L-R/R-L | Spray method | Stepper motor+A-100 spray nozzle |
preheat zone power | 20KW | Flux recycles | tray recycle |
preheat zone temperature | room temperature to 250℃ can be set | Power supply | 3 phases 5 lines 380V/3 phase 220V(option) |
heating method | hot air | Total Start power | Max.14kw |
Solder bar type | Lead-free | Normal working power | Approx.3-8kw |
solder pot power | 14kw | air pressure | 0.4MPa~0.7MPa |
Pot capacity | Approx.500kg | dimension | 4500*1600*1730（L*W*H） |
Solder pot material | Iron oven | weight | Approx.1500kg |
