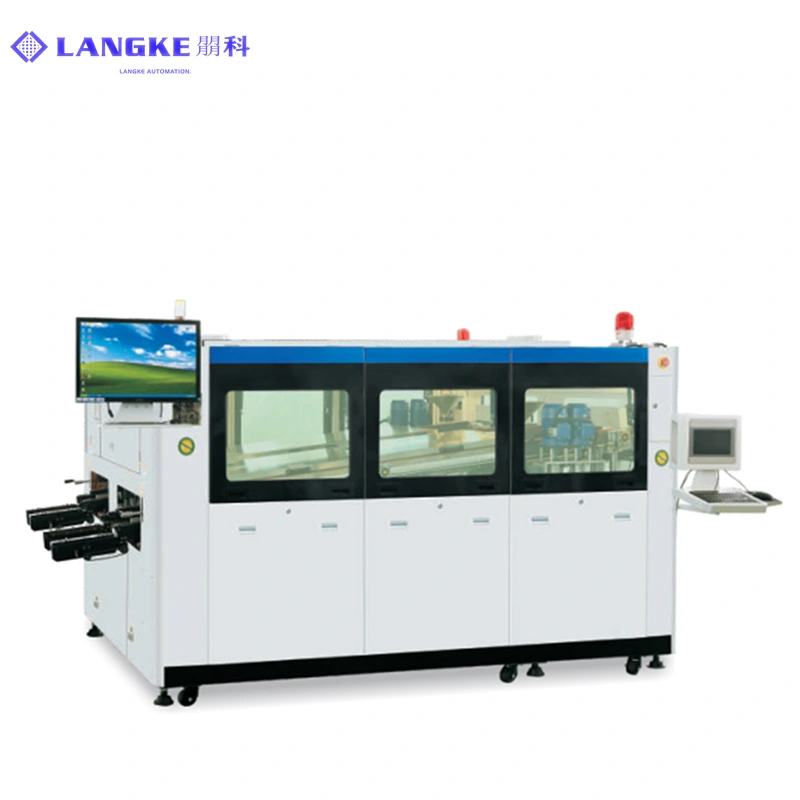

LKD-350 dual channel lead free wave solder machine

Parameter
Model	LKD-350	solder pot type	the 4th Energy-saving solder pot
PCB Width	Max.50~350	warn-up time	About 90min (set 250℃)
PCB transport height	750±50mm	solder pot temperature	room temperature to 350℃ can be set
transport speed	300-1800mm／Min	solder pot temperature control precision	±1℃
solder angle	3-7°	Solder height detection	导电式探针检测 Conductive probe detection
PCB height	Max.120mm	add solder bar method	manual
wave height range	0-12mm	temperature control method	PID+SSR
number of wave	2*2	Whole machine control method	PLC+PC*2
preheat zone length	1800MM	flux auto feeding	Automatic
preheat zone number	4 preheating zone*2	助焊剂流量 Flux flow	5~100ml/min
direction	L-R/R-L	Spray method	Stepper motor+A-100 spray nozzle
preheat zone power	20KW*2	Flux recycle	tray recycle*2
preheat zone temperature	room temperature to 250℃ can be set	Power supply	3 phase 5 line 380V/3 phase 220V(option)
heating method	hot air	Total Start power	Max.15kw2 total power： 25KW2
Solder bar type	Lead-free	Normal working power	Approx.3-5kw*2
solder pot power	14.4kw*2	air pressure	0.4MPa~0.7MPa
Pot capacity	Approx.360kg*2	dimension	470024001730（LWH）
Solder pot material	Iron oven	weight	Approx.3000kg
