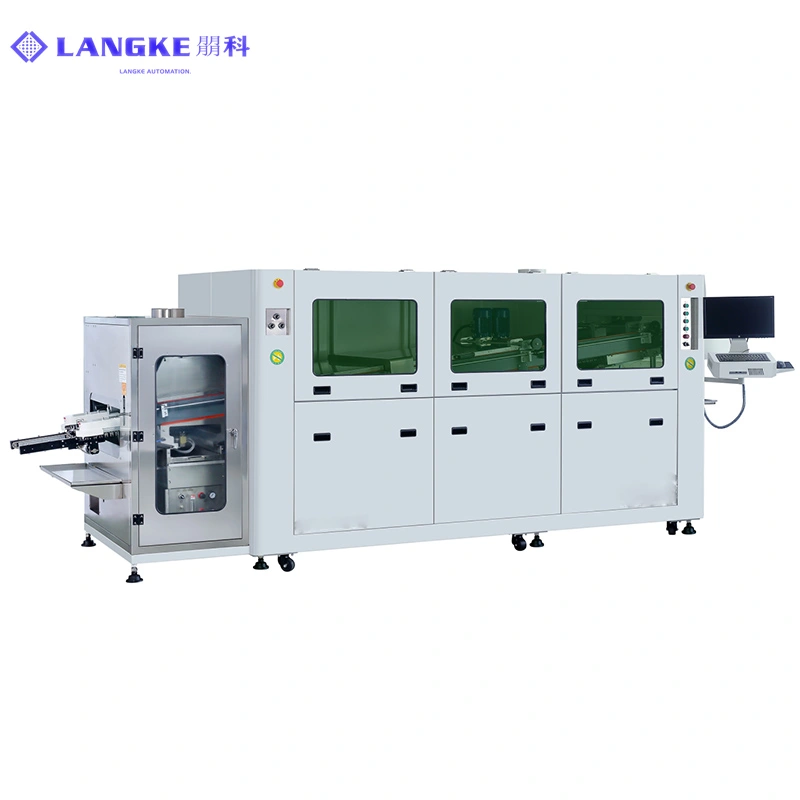

4 heating zones tht lead free wave solder machine

4 heating zones tht lead free wave solder machine

4 heating zones tht lead free wave solder machine

Description

4 heating zone lead free reflow oven machine

Parameter

Model

LKU-350

solder pot   type

the 4th Energy-saving solder pot

PCB Width

Max.50~350

warn-up   time

About 90min (set 250)

PCB   transport height

750±50mm

solder pot   temperature

room temperature to 350 can be set

transport   speed

300-1800mmMin

solder pot   temperature control precision

±2

solder   angle

3-7°

Claw type

Heavy-duty V claw/ customized

PCB height

Max.120mm

add solder   bar method

manual

wave height range

0-18mm

temperature   control method

PID+PC

number of   waves

2

width   adjust method

manual(standard)/automatic(option)

preheat   zone length

1800MM

flux auto   feeding

Automatic

preheat   zone number

4

Flux flow

10~100ml/min

direction

L-R/R-L

Spray   method

Stepper motor+A-100 spray nozzle

preheat   zone power

20KW

Flux recycles

tray recycle

preheat   zone temperature

room temperature to 250 can be set

Power   supply

3phases 5lines 380V/3phases 220V(option)

heating   method

hot air

Total Start   power

Max.14kw

Solder bar   type

Lead-free

Normal   working power

Approx.3-8kw

solder pot   power

14kw

air pressure

0.4MPa~0.7MPa

Pot   capacity

Approx.500kg

dimension

4700*1600*1730L*W*H

Solder pot   material

Iron + enamel craft

weight

Approx.1500kg
