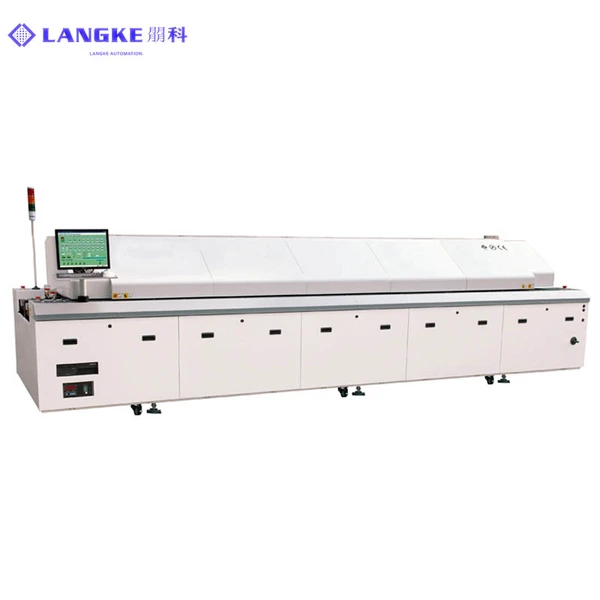

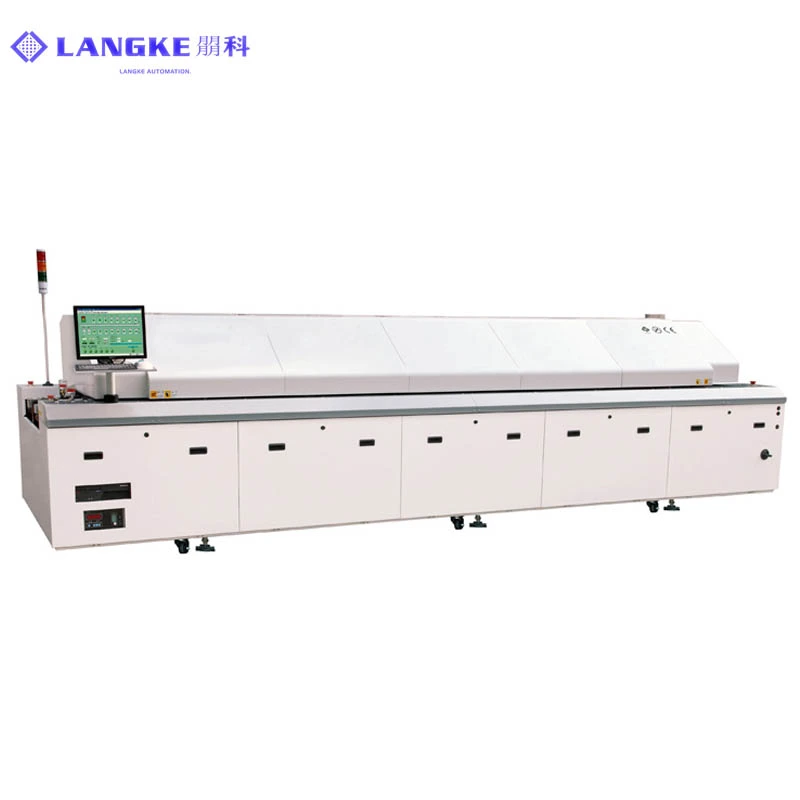

LKR-1200 lead free reflow oven soldering machines
Parameter |
model | LKR-1200 | main control | Industrial computer |
number of heating zones | Up 12 bottom 12 | number of cooling zones | Up 3 bottom 3 |
heating length | 4675MM | rectifying plate structure/ material | copper aluminum oxide plate/small circulation |
weight | APPROX:3150KG | Dimension | APPROX:7050*1430*1530mm |
Exhaust volume requirement | 12m³/min×2 | color | computer grey |

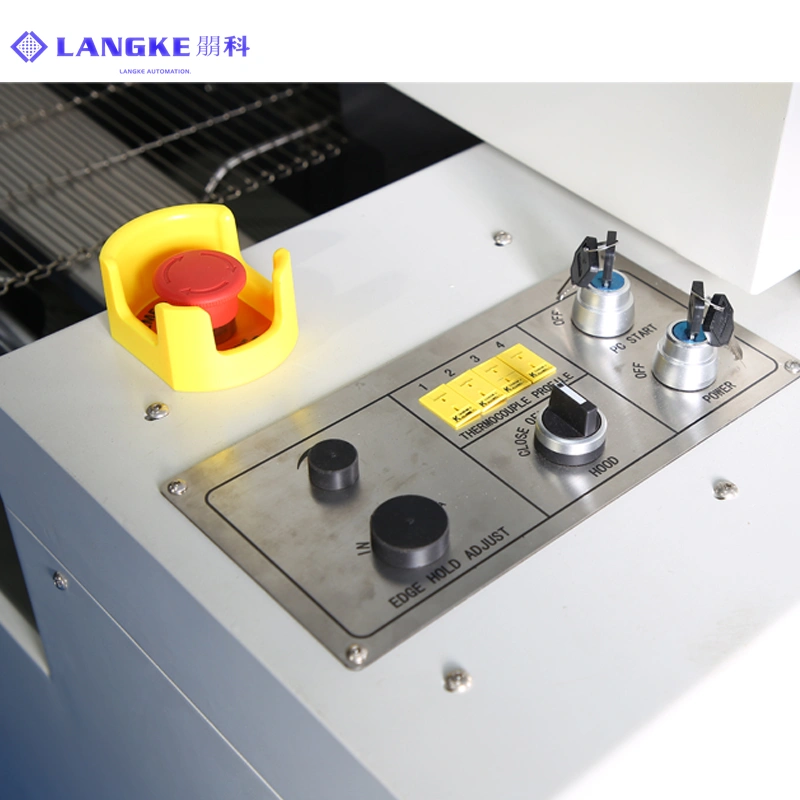

Control system |
power supply | 3P 380V 50/60HZ (3P 220V 50/60HZ | temperature control range | Room temperature-300℃ can be set |
total power | 99KW | temperature control precision | ±1℃ |
start power | 44KW | temperature control method | PID close loop control + SSR driving |
consumption power | 12KW | temperature deviation on PCB | ±1.5℃ |
hot fan speed regulation | 4 inverters | Data storage | process data and status storage |
warming time | about 30minute | abnormal alarm | abnormal temperature(extra-high/extra-low) |
Transport System |
Rails structure | Overall section type | transport rail fixed type | front rail fixed/rear rail fixed |
Chain structure | single buckle for preventing board jammed | transport height | 900±20MM |

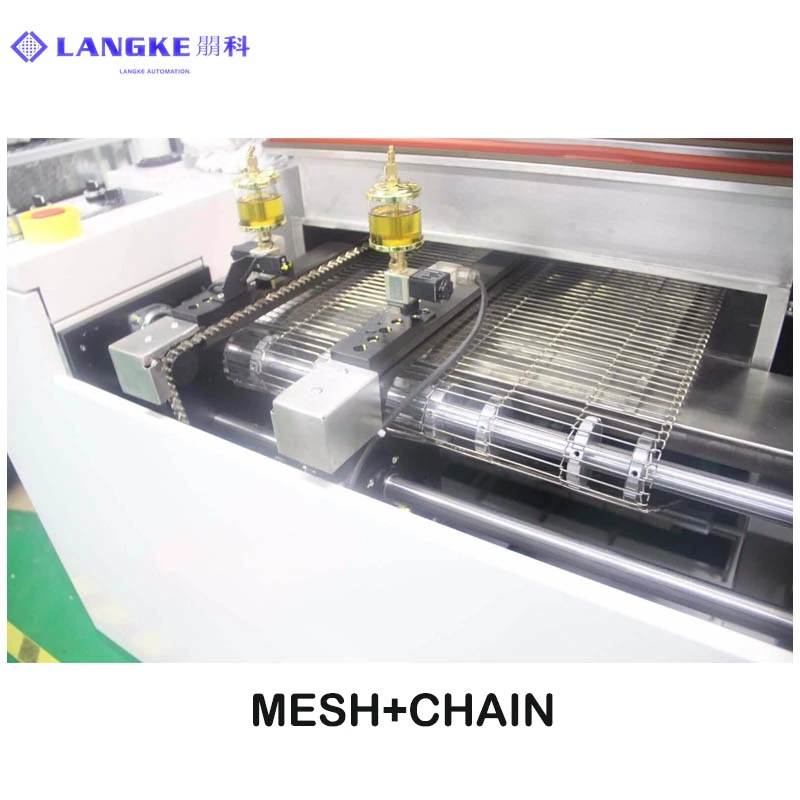

PCB max width | Single rail chain 50-400mm | transport method | Mesh + chain |
component height | up30mm bottom 30mm | transport speed | 300-1500MM |
transport direction | L-R/R-L | Auto-lubrication | Auto/manual |
Cooling system |
cooling method | force air |
