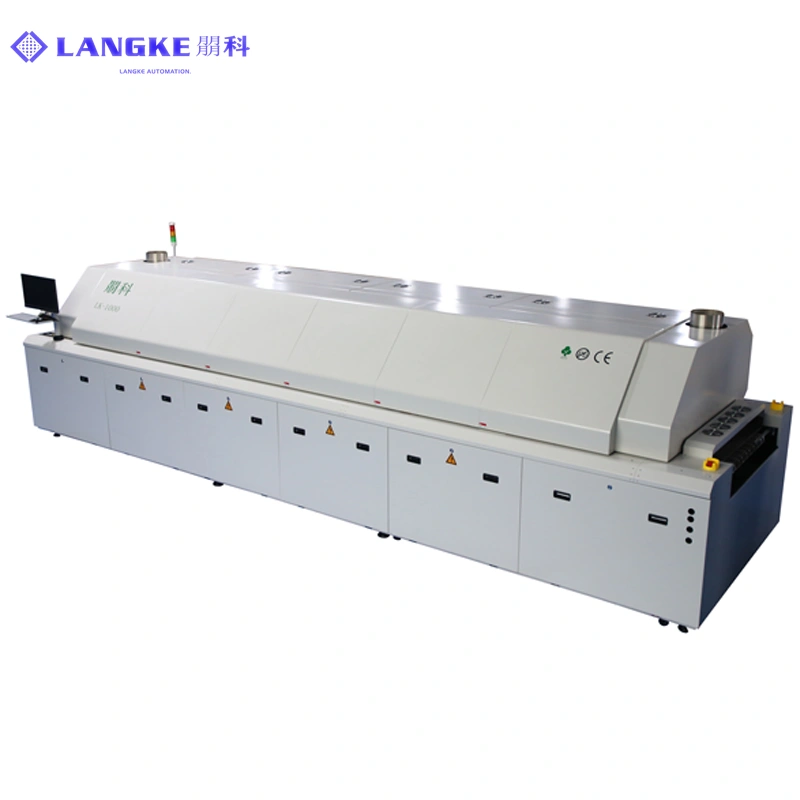

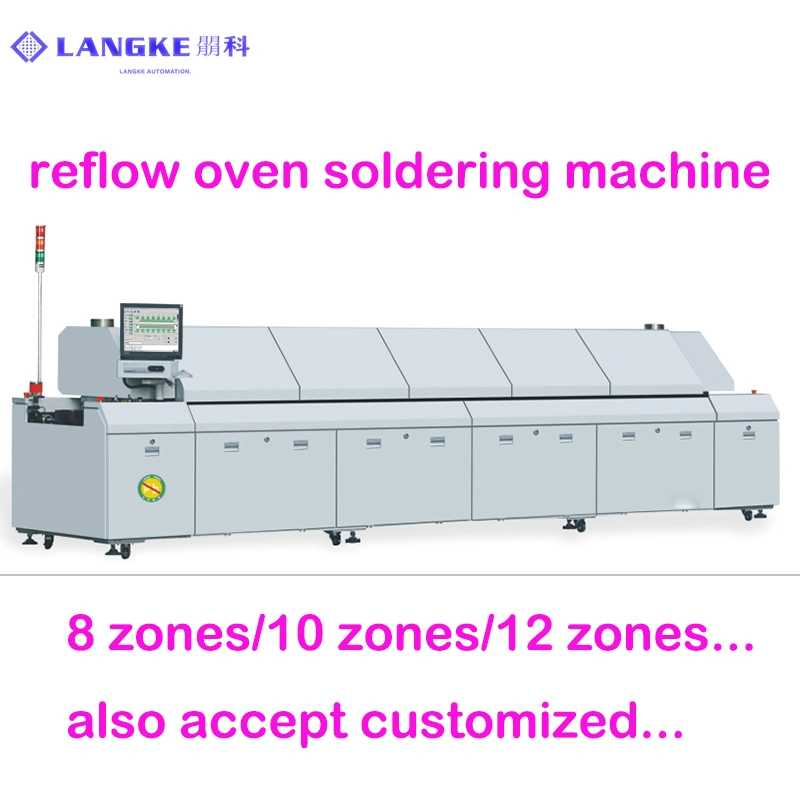

8 zones lead free reflow oven machines

LK-800D 8 zones lead free reflow oven machines

Parameter
model	LK-800D	main control	Industrial computer
number of heating zones	Up 8 bottom 8	number of cooling zones	Up 2
heating length	3110MM	rectifying plate structure/ material	small circulation/Galvanized punched sheet
weight	APPROX:2400KG	Dimension	APPROX:522516801530mm
Exhaust volume requirement	11m³/min×2	color	computer grey
Control system
power supply	3P 380V 50/60HZ(3P 220V 50/60HZ	temperature control range	Room temperature-300℃ can be set
total power	67KW	temperature control precision	±1℃
start power	32KW	temperature control method	PID close loop control+SSR driving
consumption power	10KW	temperature deviation on PCB	±1.5℃
hot fan speed regulation	Frequency converter speed regulation	Data storage	process data and status storage
warming time	about 30minute	abnormal alarm	abnormal temperature(extra-high/extra-low)
Transport System
Rails structure	Overall section type	transport rail fixed type	1-4 rail fixed/customized
Chain structure	single buckle for preventing board jammed	transport height	900±20MM
PCB max width	Double rail chain 50-250mm	transport method	mesh+chain
component height	Up25mm bottom 25mm	transport speed	300-1500MM
transport direction	L-R/R-L	Auto-lubrication	Auto/manual
Cooling system
cooling method	force air

LK-800D 8 zones lead free reflow oven machines
