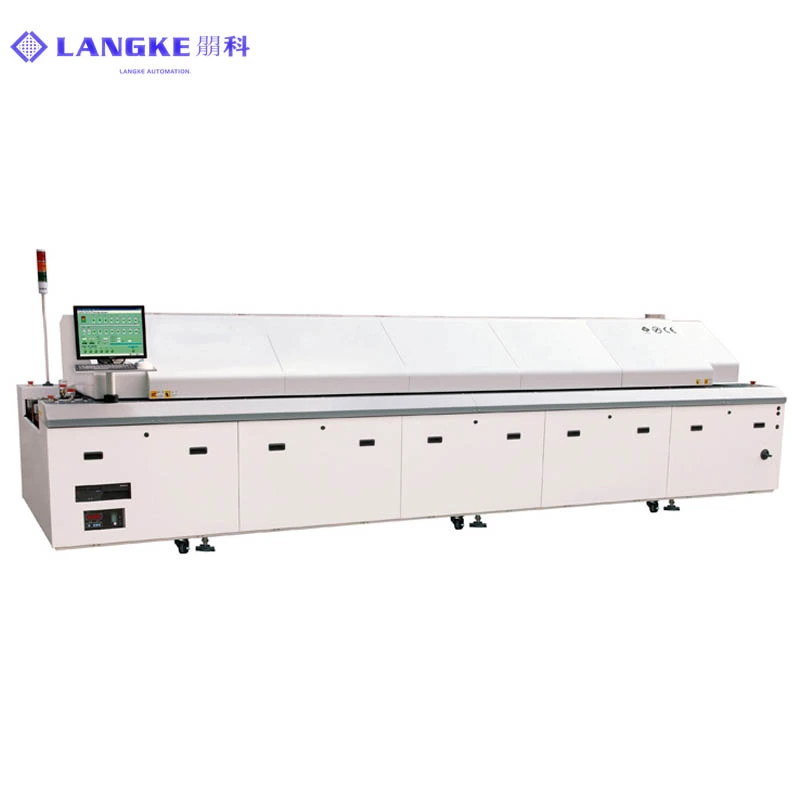

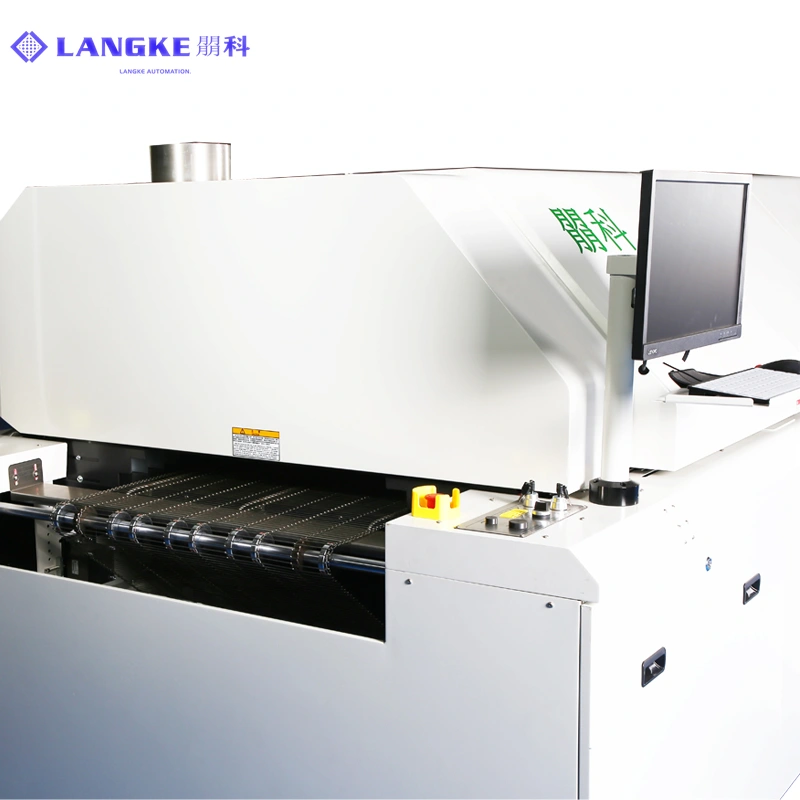

LKR-1000 single mesh and chain lead free soldering machine
Parameter |
model | LKR-1000 | main control | Industrial computer |
number of heating zones | 上10下10个加热区 Up 10 bottom 10 | number of cooling zones | 上3下3 Up 3 bottom 3 |
heating length | 3892MM | rectifying plate structure/ material | copper aluminum oxide plate/small circulation |
weight | APPROX:2700KG | Dimension | APPROX:6300*1430*1530mm |
Exhaust volume requirement | 11m³/min×2 | color | computer grey |
Control system |
power supply | 3P 380V 50/60HZ(3P 220V 50/60HZ | temperature control range | Room temperature-300℃ can be set |
total power | 80KW | temperature control precision | ±1℃ |
start power | 36KW | temperature control method | PID close loop control+SSR driving |
consumption power | 11KW | temperature deviation on PCB | ±1.5℃ |
hot fan speed regulation | 3 phases with 3 inverters | Data storage | process data and status storage |
warming time | about 30minute | abnormal alarm | abnormal temperature(extra-high/extra-low) |
Transport System |
Rails structure | Overall section type | transport rail fixed type | front rail fixed/rear rail fixed |
Chain structure | single buckle for preventing board jammed | transport height | 900±20MM |

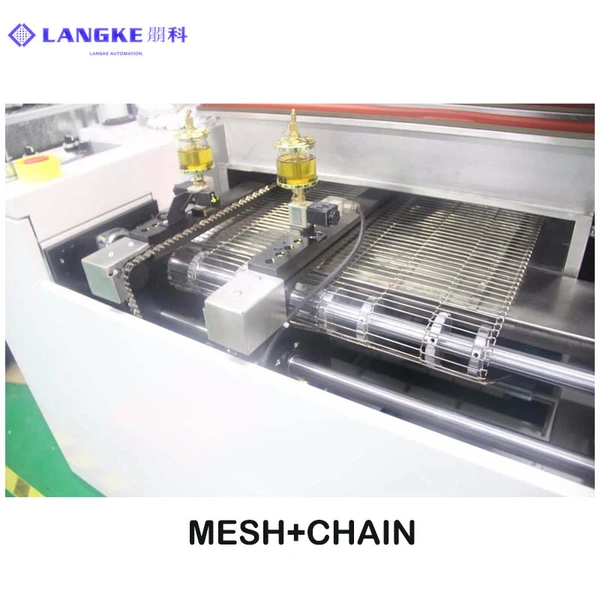

PCB max width | Single rail chain 50-460mm (option: 50-600mm) | transport method | Mesh + chain |
component height | up30mm bottom 30mm | transport speed | 300-1500MM |
transport direction | L-R/R-L | Auto-lubrication | Auto/manual |
Rail load | 80kg |
|
|
Cooling system |
cooling method | force air（cooling zones total length:1100mm） |
