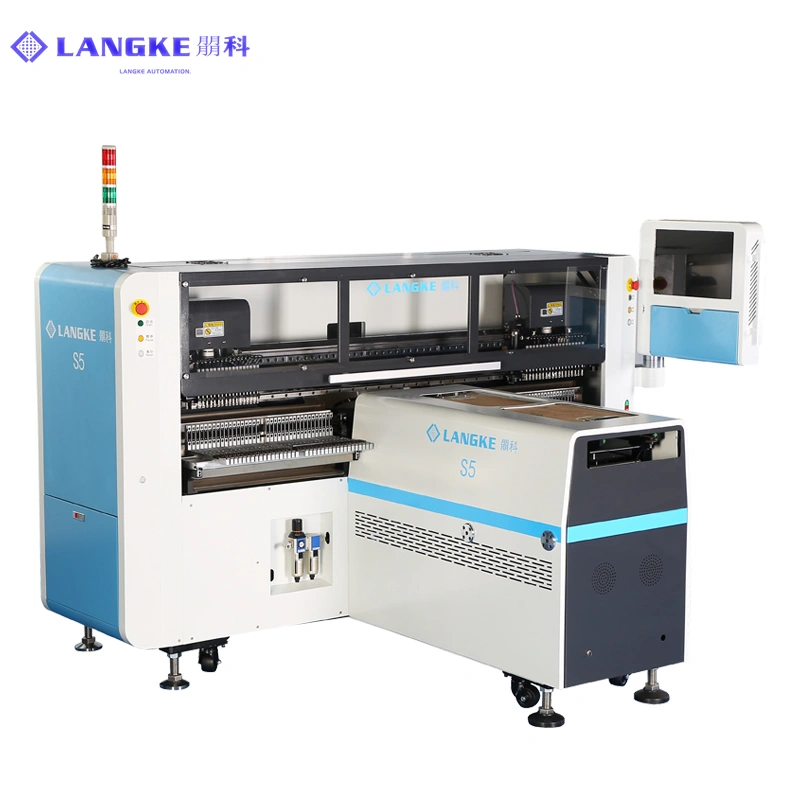

Langke S5 smt machine for T5 T8 tube making production line

Langke S5 smt machine is suitable for the T5 T8 tube making

Description

T5 T8 tube smt machine making production

Model

S5

PCB

PCB   Size

Max:   1200*320mm, Min: 50*50mm

PCB   thickness

0.5-5mm

PCB   Positioning

CCD   visual, Mark point positioning

PCB   Transmitting Speed

320mm/s

PCB   Transmitting Direction

Front   to Back

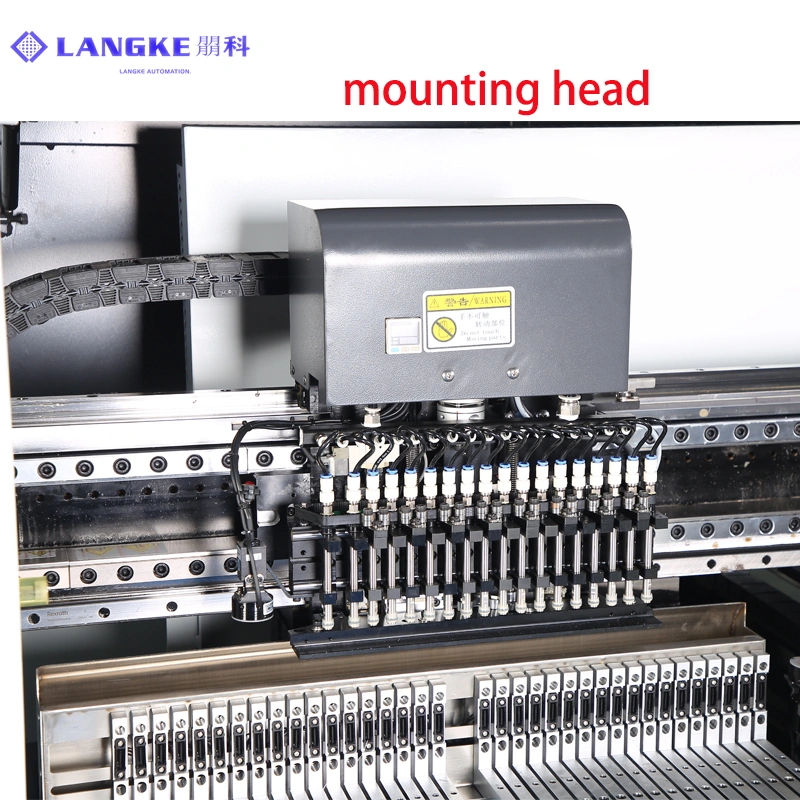

Mounting

Mounting   Head Driver

Maglev   linear motor

Mounting   Head Amount

2Heads

Nozzles   Amount

18   Pcs per head, totally 36 Pcs

Mounting   Accuracy

±0.03mm

Mounting   Speed

150000   - 190000 CPH

Repeat   Accuracy

±0.01mm

Min   Mounting Gap

12.5mm

Components   Range

0603,0805,1206,2835,3014,3528,5050,5630,5730,   RGB and other LED stripped material.

Component   Height

10mm

Feeder   Amount

54/72   Pcs

Feeder   Type

Dual   motor electric feeder

Mounting   Type

Group   picking and group placing

PCB   Input/Output Method

belt   transfer

Rail   size

1300*330mm

System

Computer   System

Windows

Operating   Software

Independent   R&D by Langke

Visual   System

5 sets   of optical cameraoption: visual inspection for   missing component alarm

Motion   Control Module

Langke   Independent R&D Motion control card

X Y   axis driver

Japanese   Fuji Servo Motor

Working Requirement

Power

380V   AC/50Hz/3 Phase

Max   Power

5.0   KW

Air   Pressure

0.5-0.8Mpa

Temperature

23±3

Dimension

Dimension

2580*2500*1550mm

Weight

2190KG
