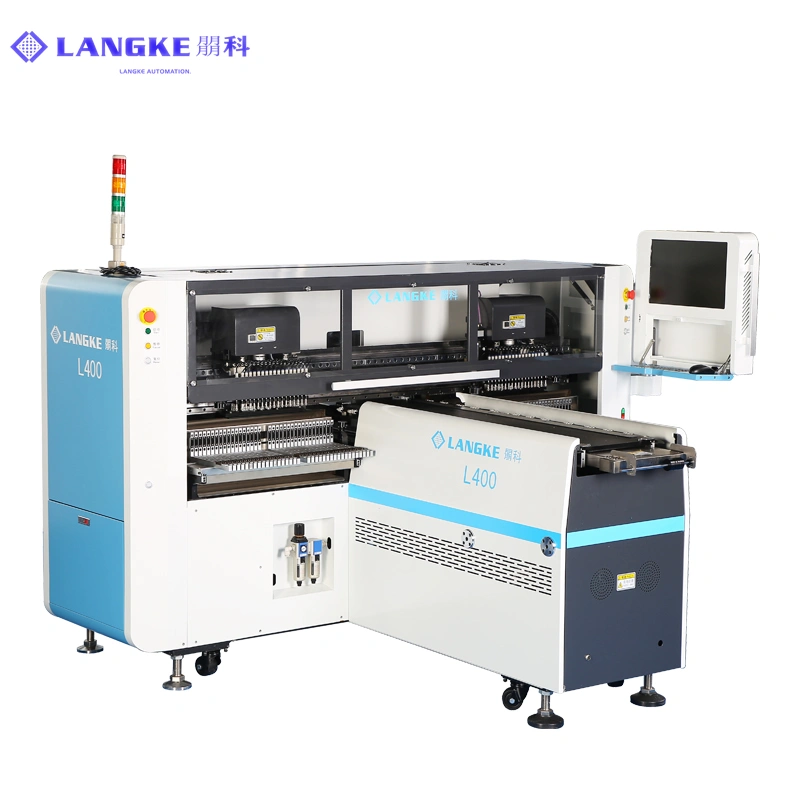

Langke L400 smt roll to roll FPCB pick and place machine

Model

L400

PCB

PCB Size

Max: W:280mm L: No limitation

PCB thickness

0.3-5mm

PCB Positioning

CCD visual, Mark point positioning

PCB transport speed

320mm/s

PCB Transmitting Direction

Front to Back

Mounting

Mounting Head Driver

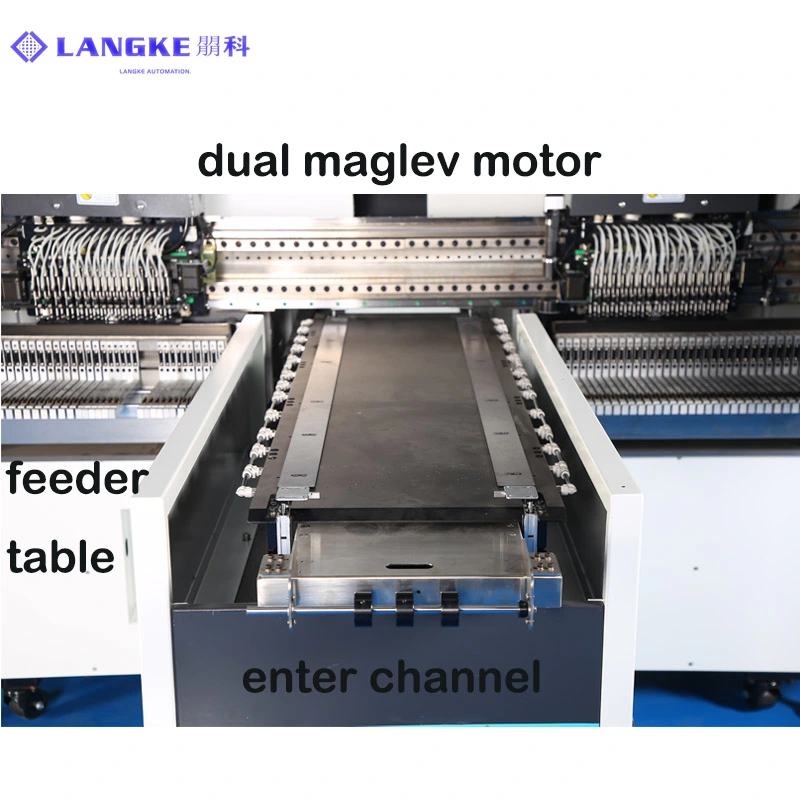

Maglev linear motor

Mounting Head Amount

2 Heads

Nozzles Amount

18 Pcs per head, totally 36 Pcs

Mounting Accuracy

±0.03mm

Mounting Speed

130000 - 150000 CPH

Repeat Accuracy

±0.01mm

Min Mounting Gap

12.5mm

Components Range

0603,0805,1206,2835,3014,3528,5050,5630,5730, RGB and   other LED stripped material.

Component Height

10mm

Feeder Amount

54/72 Pcs

Feeder Type

Dual motor electric feeder

Mounting Type

Group picking and group placing

PCB Input/Output Method

Vacuum Absorb + belt transfer

System

Computer System

Windows

Operating Software

Independent R&D by Langke

Visual System

5 sets of optical cameras

Motion Control Module

Motion control card R&D by Langke

XY axis driver

Japanese Fuji Servo Motor

Working Requirement

Power

380V AC/50Hz/3 Phase

Max Power

3.0 KW

Air Pressure

0.5-0.8Mpa

Temperature

23℃±3

Dimension

Dimension

2970*2500*1650mm

Weight

2200KG
