Langke L600 roll to roll flexible strip light mounter
Model	L600
PCB
PCB Size	Max : W:280mm L: No limitation
PCB thickness	0.3-5mm
PCB Positioning	CCD visual, Mark point positioning
PCB Transmitting Speed	320mm/s
PCB Transmitting Direction	Front to Back
Mounting

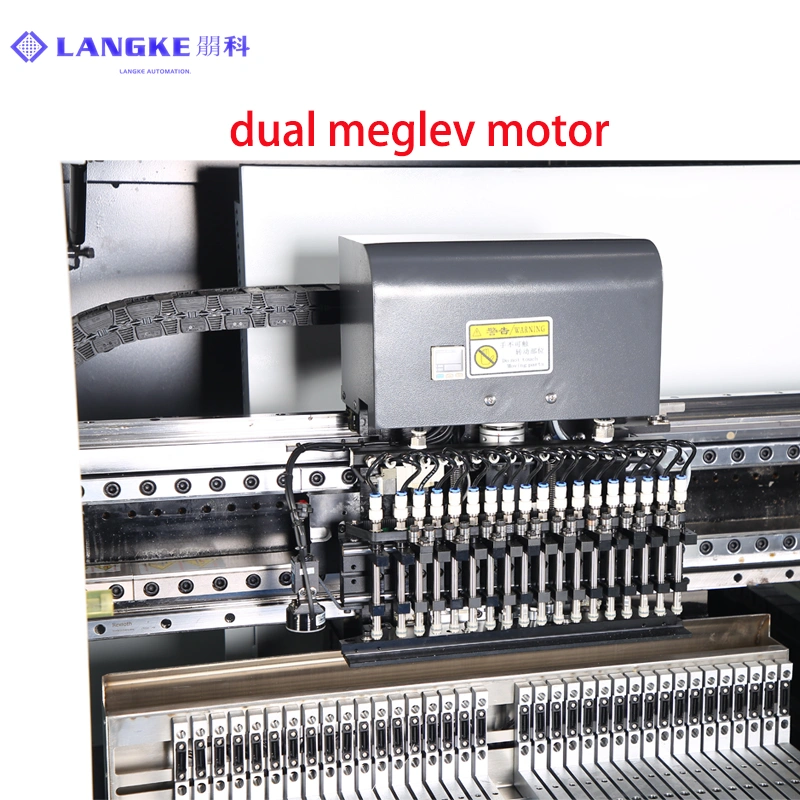

Mounting Head Driver	Maglev linear motor (dual)
Mounting Head Amount	2Heads
Nozzles Amount	32 Pcs per head, totally 64Pcs
Mounting Accuracy	±0.03mm
Mounting Speed	250000 - 270000 CPH
Repeat Accuracy	±0.01mm
Min Mounting Gap	6.5mm
Components Range	0805,1206,2835,3014,3528,5050,5630,5730, RGB and other LED stripped material.
Component Height	10mm
Feeder Amount	48/64 Pcs

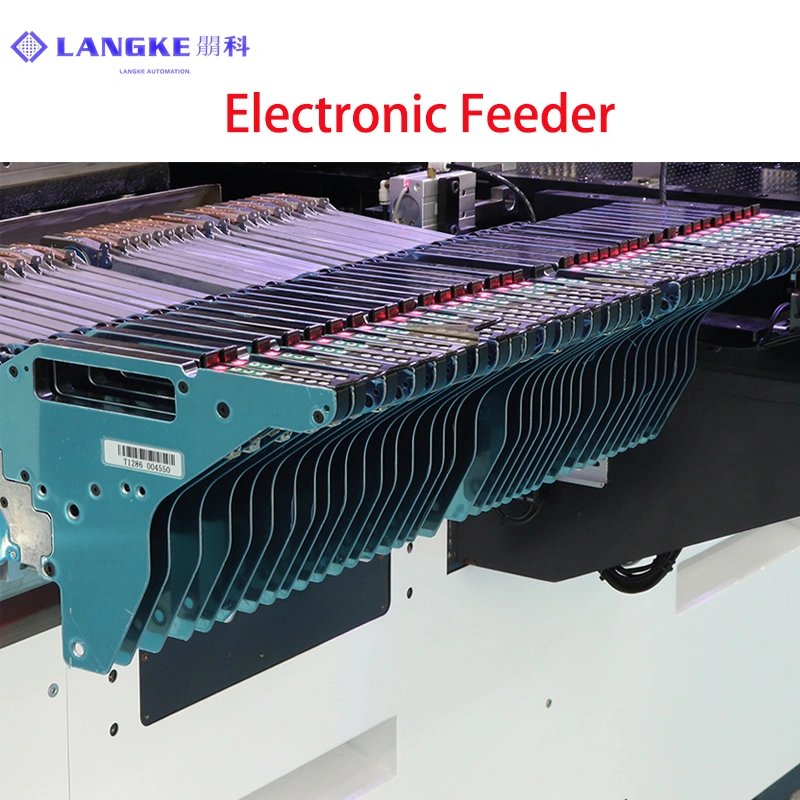

Feeder Type	Dual motor electric feeder
Mounting Type	Group picking and group placing
PCB Input/Output Method	Vacuum Absorb + positioning cylinder transfer
System
Computer System	Windows
Operating Software	Independent R&D by Langke
Visual System	5 sets of optical camera（option: visual inspection for missing component alarm）
Motion Control Module	Googol/Gaochuan Motion control card
X Y driver	Japanese Fuji Servo Motor
Working Requirement
Power	380V AC/50Hz/3 Phase
Max Power	5.0 KW
Air Pressure	0.5-0.8Mpa
Temperature	23℃±3
Dimension
Dimension	297025001550mm
Weight	2203KG

L600 dual maglev motor roll to roll led strip light chip placement machine
