Description:
1.L500 is dedicated to assemble LED FPCB with infinite length, cater to the trend of FPCB in LED industry.
2. 2 modules and 64 electric feeders, can mounting four kinds of components at the same time, and the capacity won't be effected by the ratio of chip to resistance.
3. Adopt special accuracy and smooth input FPCB ways, which can solve the issue of input deviation, meet the demand of mounting RGB.
4. Adopt imported linear motor and grating ruler to locate the position, make sure the machine mounting with high speed and high accuracy.
5. Integrated machine frame, welded into a whole by industrial class steel tubes and panels，greatly increase the machine's stability.
Specification:

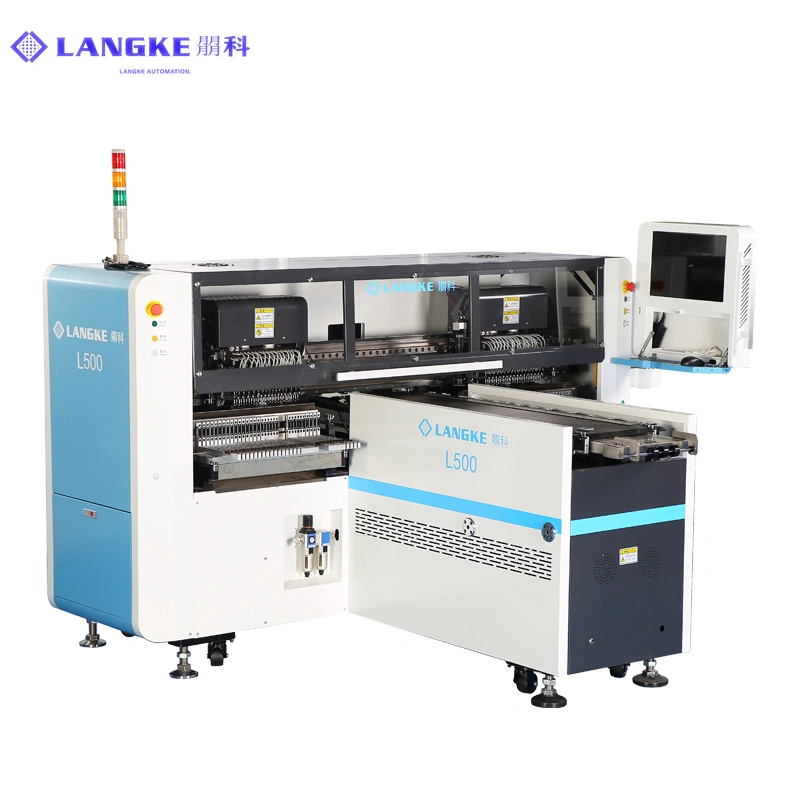

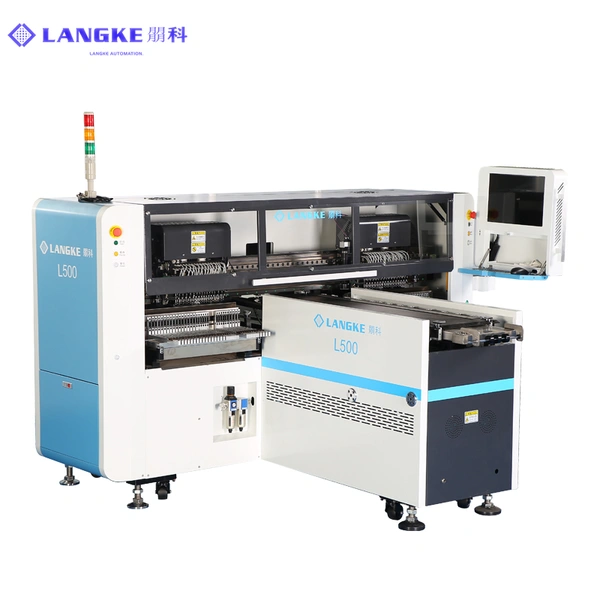

Langke L500 roll to roll flexible strip light mounter |
Model | L500 |
PCB |
PCB Size | Max : W:280mm L: No limitation |
PCB thickness | 0.3-5mm |
PCB Positioning | CCD visual, Mark point positioning |
PCB Transmitting Speed | 320mm/s |
PCB Transmitting Direction | Front to Back |
Mounting |

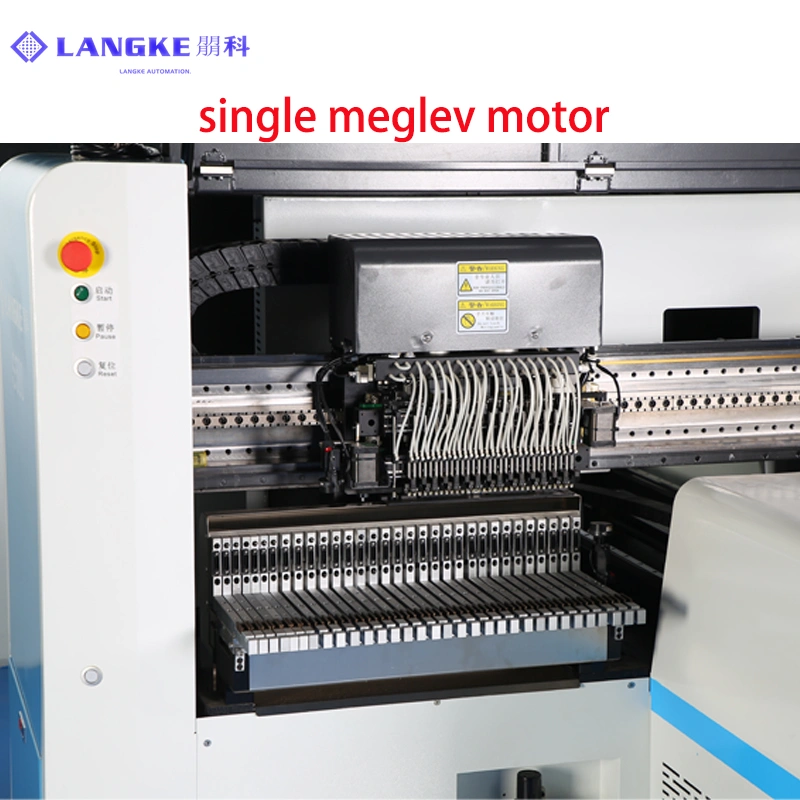

Mounting Head Driver | Maglev linear motor |
Mounting Head Amount | 2 Heads |
Nozzles Amount | 32 Pcs per head, totally 64Pcs |
Mounting Accuracy | ±0.03mm |
Mounting Speed | 250000 - 270000 CPH |
Repeat Accuracy | ±0.01mm |
Min Mounting Gap | 6.5mm |
Components Range | 0805,1206,2835,3014,3528,5050,5630,5730, RGB and other LED stripped material. |
Component Height | 10mm |
Feeder Amount | 48/64 Pcs |

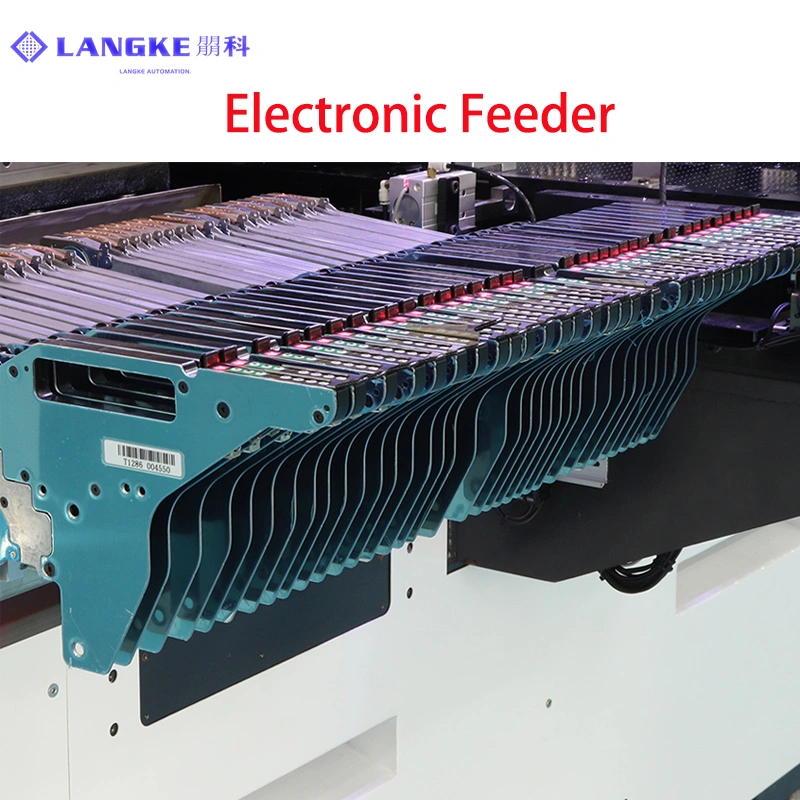

Feeder Type | Dual motor electric feeder |
Mounting Type | Group picking and group placing |
PCB Input/Output Method | Vacuum Absorb + positioning cylinder transfer |
System |
Computer System | Windows |
Operating Software | Independent R&D by Langke |
Visual System | 5 sets of optical camera（option: visual inspection for missing component alarm） |
Motion Control Module | Googol/Gaochuan Motion control card |
X Y driver | Japanese Fuji Servo Motor |
Working Requirement |
Power | 380V AC/50Hz/3 Phase |
Max Power | 5.0 KW |
Air Pressure | 0.5-0.8Mpa |
Temperature | 23℃±3 |
Dimension |
Dimension | 2970*2500*1550mm |
Weight | 2203KG |
