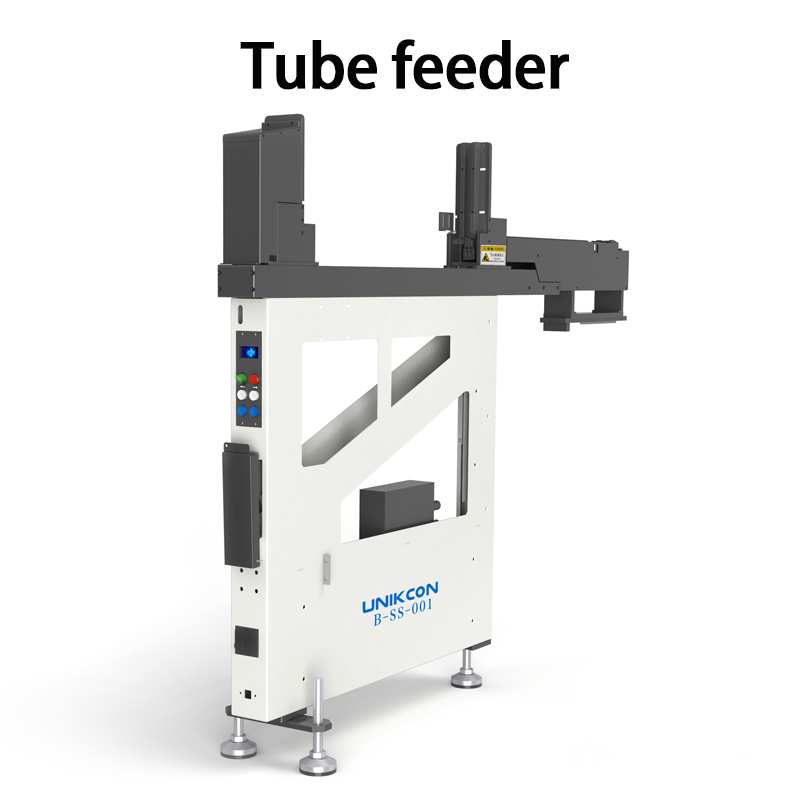

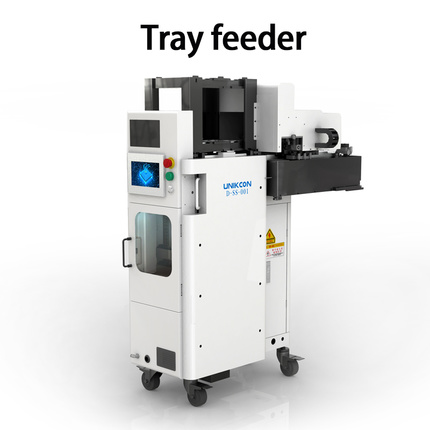

THT Odd form feeder design and manufacturing for EMS smart factory

Item

Data

basic data

model

B-SS-001

Voltage

Single phase AC 220V，50Hz

Power

75W

Air source

0.45-0.6Mpa

weight

45KG

Feeder Dimension

L:1350±10mm

W:350±5mm

H:1150±25mm

noise limited

≤65dB

function data

Quantity of stock

≤20 tube（depended on the   component size）

feeding speed

2s/ pc

failure rate

0.3%-0.6%

component data

component size   (rectangle)

L: L+1~2; L≤30mm

W: W±0.1: W≤25mm

H:H+0.5: H≤30mm

tube size

L: L+1~2;400≤L≤550mm

W：W±0.1；W≤25mm

H：H±0.5; H≤30mm

Component pin spacing   tolerance P

P±0.1;

Component pin   diameter φd

φd±0.1;

component pin lead   length

h±0.5;2.8mm≤h≤5mm

Component pin   direction

Vertically downward,   parallel to the direction of gravity
