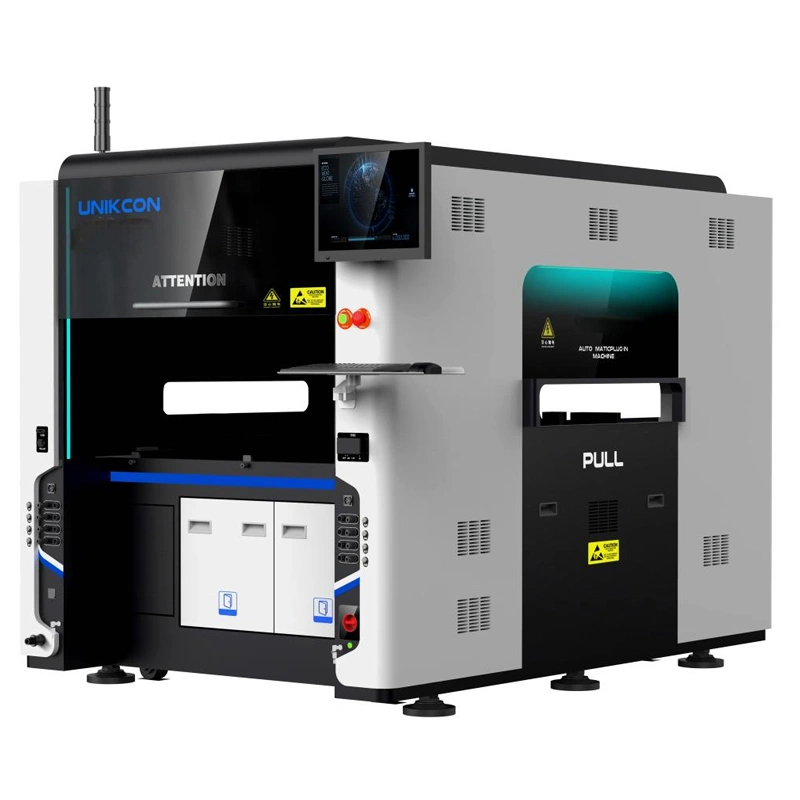

Odd-shaped online auto insertion machine EM2-12S
keywords: insertion machine, online insertion machine, insert machine, pcb insert machine, pcb insertion machine, radial insertion machine, axial insertion machine, axial insert machine, tht insertion machine, tht insert machine, odd-shaped insertion machine
EM2-12S series technology data sheet |
machine dimension (include keyboard and signal light) | 1550×2000×1550mm (LxWxH) | PCB height(up/down) | 70mm/40mm（optional can be customized to 80mm) |
weight | 2200kg | PCB max weight (include component, jigs) | ≤10Kg(chain) ≤3kg (belt) |
OS | Windows | door quantity | 2 |
PCB edge width/board thickness (include jig) | 0.5-2mm/0.5-20mm | PCB fixed method | Servo up support/ Cylinder clamping |
door safe sensor detection | standard | rail | chain |
air source | 0.45-0.65MPa, 300 liter/min，the compressed air is dried and filtered | PCB transport direction | L→R/R→L |
max power | 220V ±10% ，50Hz，3.5KW | Guide | 3 phases to transport |
normal working power | 2.5KW | guide width adjust | Auto |
number of insertion axis | 12 | transport heigh | 900±20mm |
max component size | 3.0*3.0mm-35*35mm（L*W） diagonal≤50mm | insert clinch module | optional |
Up side | Bottom side | 0.5mm-55mm | ≤40mm | signal interface | standard |
picking method | Nozzle/ Grippers | MES | open data software port can be used for data docking with the MES system |
fastest inserting speed | 0.6-0.8s | Imaging system | Mark CCD(Top) | 2 |
insert accuracy(3ó) | CPK≥1.0 | ≤±0.025mm @ 3 sigma/CPK≥1.33） | Component CCD (Bottom) | 6 |
Insert force | 50N（adjustable） | max number of feeder (double side) | Radial tape feeder | 16 pcs |
|
insertion direction | 0-360° | Axial tape feeder | 12-16 pcs |
|
component weight | ≤300g | tube feeder | 16 pcs |
|
guide max size (dual lane) | 50*50-360*300mm | linear feeder | 90mm/16pcs，140mm/12pcs |
|
guide max size (single lane) | 50*50-360*610mm（1st time fixed pcb） 50*50-720*610mm（2nd time fixed pcb） | bowl feeder | 4pcs |
|
Yield | ≥99.5% | tray feeder | 4pcs |
|
feeder station number (double side feeding) | 8-16 pcs |
|
|
|
