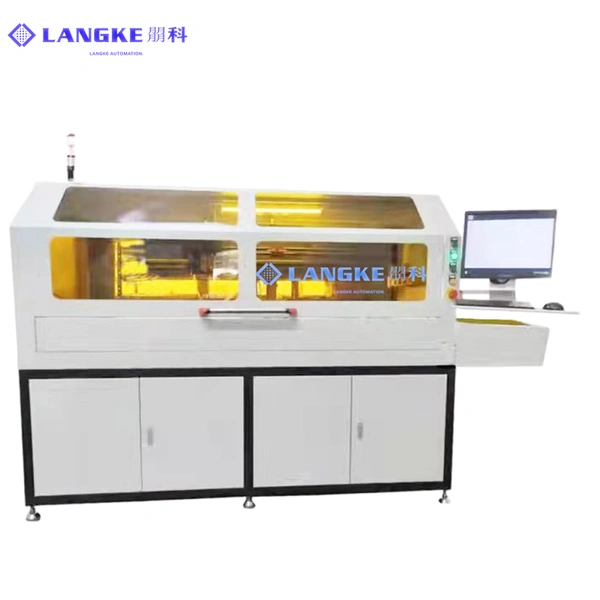

smt roll to roll full auto solder paste printer machine
smt printer, smt solder paste printer, smt full auto printer
1.Patented mathematical operation mode, to ensure the machine to achieve high precision, printing accuracy up to 0.05mm.
2.Special CNC adjustment platform: accurate and reliable structure, convenient adjustment, can quickly realize the printing of all kinds of FPCB of different thickness.
3.Image and optical path system: the new optical path system, uniform ring and high coaxial light, with the brightness function can be adjusted without pole, so that all types of Mark points can be well recognized.
4.Pressure, up and down speed, printing speed, printing range of the scraper can be quickly adjusted, and scraper can be quickly removed for paste cleaning, providing a good printing control platform for equipment operators.
Model | LK-AP1000 |
Stencil Size | 1450*450mm |
Stencil Thickness | 12-40mm |
PCB Size | Length: No limitation Width:250mm |
PCB Thickness | 0.5-1.2mm |
Transport Height | 900±100mm |
Transport Speed | 500mm/s（Adjustable） |
PCB Loading Direction | Left to right, or right to left (Be set while manufacturing, after confirm, cannot be changed) |
PCB Loading Method | Drag by module + Servo Roller |
Connection Method | The position of PCB Loading and Unloading are the induction signals of the machine |
PCB Supporting Method | High flatness aluminum plate (os6061) |
PCB Clamping Method | Air cylinder + Servo torque tensioning (Update tension strength in real time) |
Printing Head | Air Cylinder (The adjustable stroke:0-50MM) |
Scraper Speed | 10-200mm/sec |
Scraper Type | Detachable steel blade scraper (Angle 45°) |
Cleaning Method | Can be set in a certain number of printing to remind manual cleaning |
Camera Scanning Range | ±5mm |
Repeated Positioning Accuracy | ±0.02mm |
Printing Accuracy | ±0.05mm |
Printing Cycle | ≤16sec |
Operation System | Win7 |
Time for Switch Line | ≤5min |
Air Consumption | 5-6Kgf/cm² |
Power | AC220V±10%,50/60Hz，2.5KW |
Control Method | PC + Mitsubishi Motion control CPU |
Dimension | L2500×W1100×H1950（mm） |
