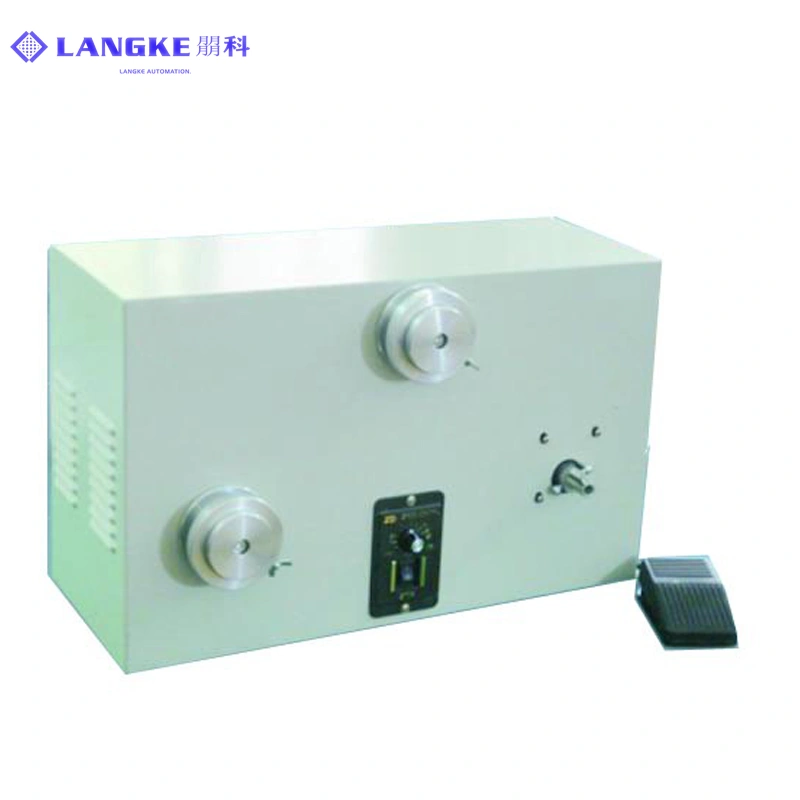

LED strip light reel machine
Main Funtion
1.The machine may manufacture's LED strip light's wide range:0~25 mm. Assembling 3 M double adhesive type and LED
strip light .
2.The machine may manufacture LED strip light type:waterproof,no waterproof ,have the PVC cover or not LED strip light.
3.The production capacity is 1000 meter/per hour on the basis of skillful worker.
4.The efficiency is double than last machine .And save one worker .And easy,fast.
5.The machine's reel has Clockwise and counterclockwise direction,the aim is that LED inside or outside.
6.May adjust the manufacturing speed.
7.Operate the machine's process is very easy.When the strip light is distorted,may use foot to stop it.
8.The efficiency is high and reduce the worker's repetitive movement.
Machine's parts notes
1.May use the structur to adjust the force on the basis of strip light's width.
2.Fix 3 M double adhesive type.
3.Adjust speed button.
4.Power switch.
5.Fix reel position,automatic run.
6.Direction switch,the direction is clockwise when 0 position or not will be counterclockwise.
7. 220 V power input line,three phase.
8.Foot switch control the machine's movement or not.
Specification:
Outside Size：450*250*290（MM）
(Input Voltage)：220V，50-60HZ
(Power)：15W
(Weight)：about 8 KG
